Bevel Gear Units
Our range comprises 3 gear unit models with different configurations and transmission ratios, with high performance at low space requirements. In addition to the standard product range, we offer a variety of customized gear solutions.
- Stock Program
- Custom Made Parts
We have the following bevel gear units in our standard stock program:
- ANGLgear Bevel Gear Unit
- i=1:1
- i=2:1
- Gearbox type with 2 or 3 Flanges
- Bevel Gear Unit
- i=1:1, i=2:1, i=3:1
- Series 558-…-…
- and i=1:1 – i=5:1 in Series 557…-…

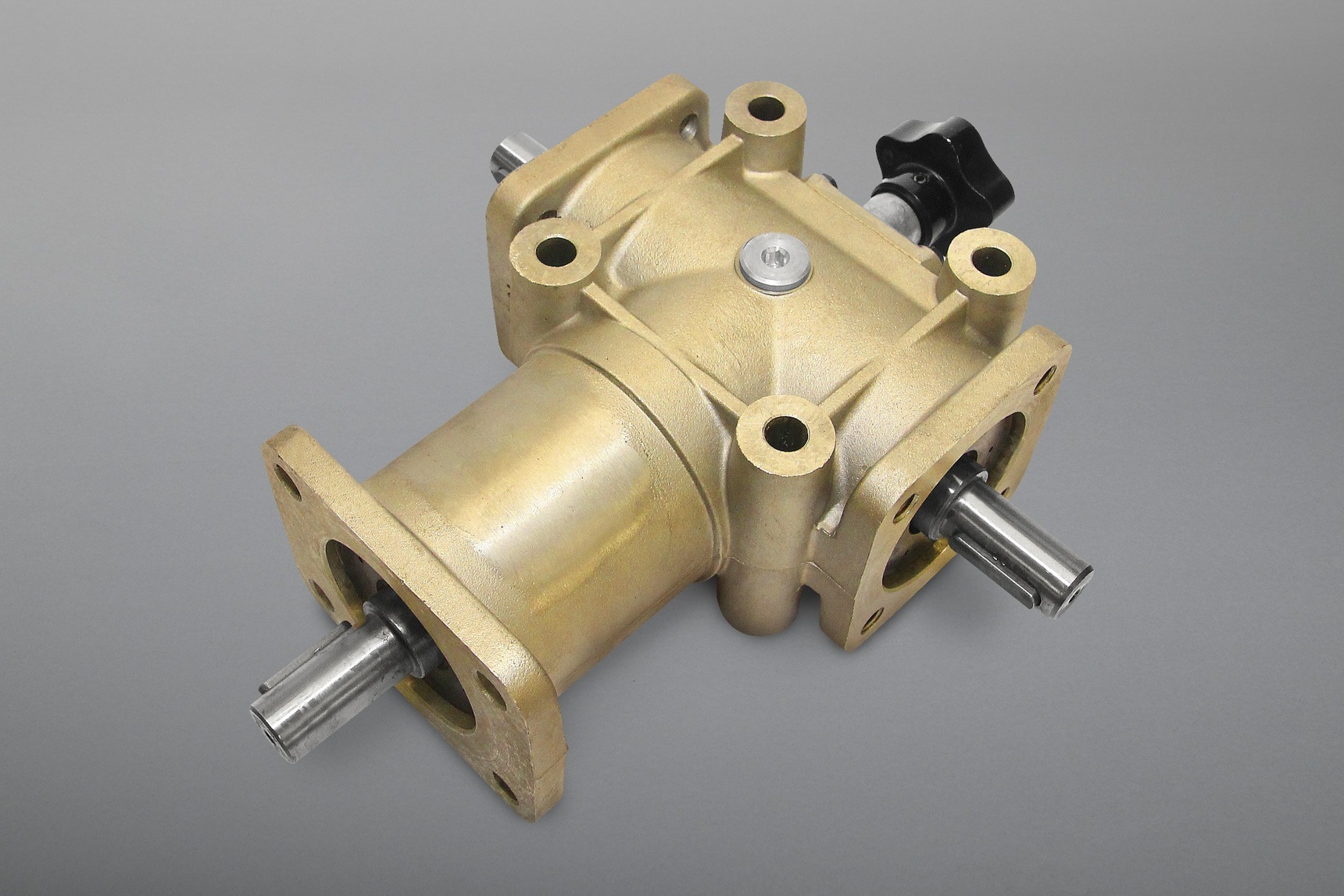

- Reversible Units
- i=1:1
- Series 558-…-…
- Assemble Flanges for Bevel Gear Units
- Shaft-Mounted Spur Gear Reducers
ANGLgear – Special models can be provided with
- Various shaft lengths and configurations
- Same relative rotation of input-to-output shafts
- 3-way units with counter-rotating output shafts
- Shafts with flats, splines, holes, etc.
- Modifications to the mounting flanges and housing
- Special materials, bearings, seals, greases, coatings, etc.
The images show examples of special gear units that have been developed according to customer requirements or that have been modified as requested.
Bevel Gear Units
On request, bevel gear units are available which suit applications with higher speeds as well as unusual operating temperatures or offer reduced angular backlash. For use in corrosive environments and for applications with special requirements of cleanliness and hygiene (e.g. food, pharmaceutical, chemical industry), stainless steel bevel gear units are available on request.
Spur Gear Units, Bevel Helical Gearbox
Providing high performance, running smoothness and low noise level – please send your request!
Bevel Gear Units Overview
This section contains a selection of our products with further links to the respective technical specifications. Didn’t find what you were looking for? Contact us and we will be pleased to advise you on your project.
Good to know: ANGLgear
The well-established ANGLgear line of bevel gearboxes was developed to provide manual or power transmission of rotary motion in a compact, standardized right-angle unit. All units are inspected and tested to ensure proper operation at the rated speed.
Every ANGLgear manufactured is tested to meet our quality specifications and are 100% inspected prior to packaging. This process ensures a consistent quality of the gearboxes, and filters out units that might become a problem if installed in an application.
Bevel gears
All gears in the ANGLgear product line are cut using the Gleason Generating System to a AGMA Quality Class 9. This system develops straight bevel Coniflex* tooth profiles, which are crowned at the center of the tooth. This allows for better tooth meshing, and operating pitchline velocities of over 1,000 feet per minute. All gears are then carburized case hardened to ensure a long operating life.
Bearings
There are four ball bearings in each ANGLgear unit. Each bearing is packed with Exxon Beacon 325 Grease and sealed with two Buna-N seals. The bearings are lubricated for life. Special seals such as Viton and Teflon can be provided for high temperature applications.
Housing
The housings are aluminum alloy castings. Each housing is precision machined on CNC machining centers and then coated with a chemical film to protect the material. We can offer special materials and coatings for further protection in corrosive environments, and special machining for precision mounting and alignment.
Shafts
The shaft material for Sizes 1, 2 and 3 is AISI #416 stainless steel (DIN 1.4005). **On 2:1 models, the pinion shaft is cadmiumplated carbon steel. For Sizes 4 and 5, the shaft material is black-oxide carbon steel. We can offer a variety of materials and treatments to meet your design specifications. Shafts can be provided with special extensions (with flats, splines, holes, etc.) and/or specific lengths - please send us your request.
Experience has proven that noise level testing and inspection provide an accurate indication of operational efficiency. All ANGLgear
units are tested to meet the following maximum noise levels for
acceptance. Further information can be found in our download area.
For special applications requiring reduced noise levels, please
consult us.
Each unit is checked for its gear mesh backlash to ensure it is within the prescribed backlash range. For Size 1, the backlash range is 1/4° to 3/4°. For Sizes 2 through 5, the backlash is 1/8° to 1/2°. For special applications requiring reduced backlash , please contact us.
ANGLgear units are lubricated for life. All models are lubricated with Exxon Beacon 325 grease, having an operating temperature range from -54°C to +93°C (-65°F to +200°F). Different greases can be supplied upon request.
