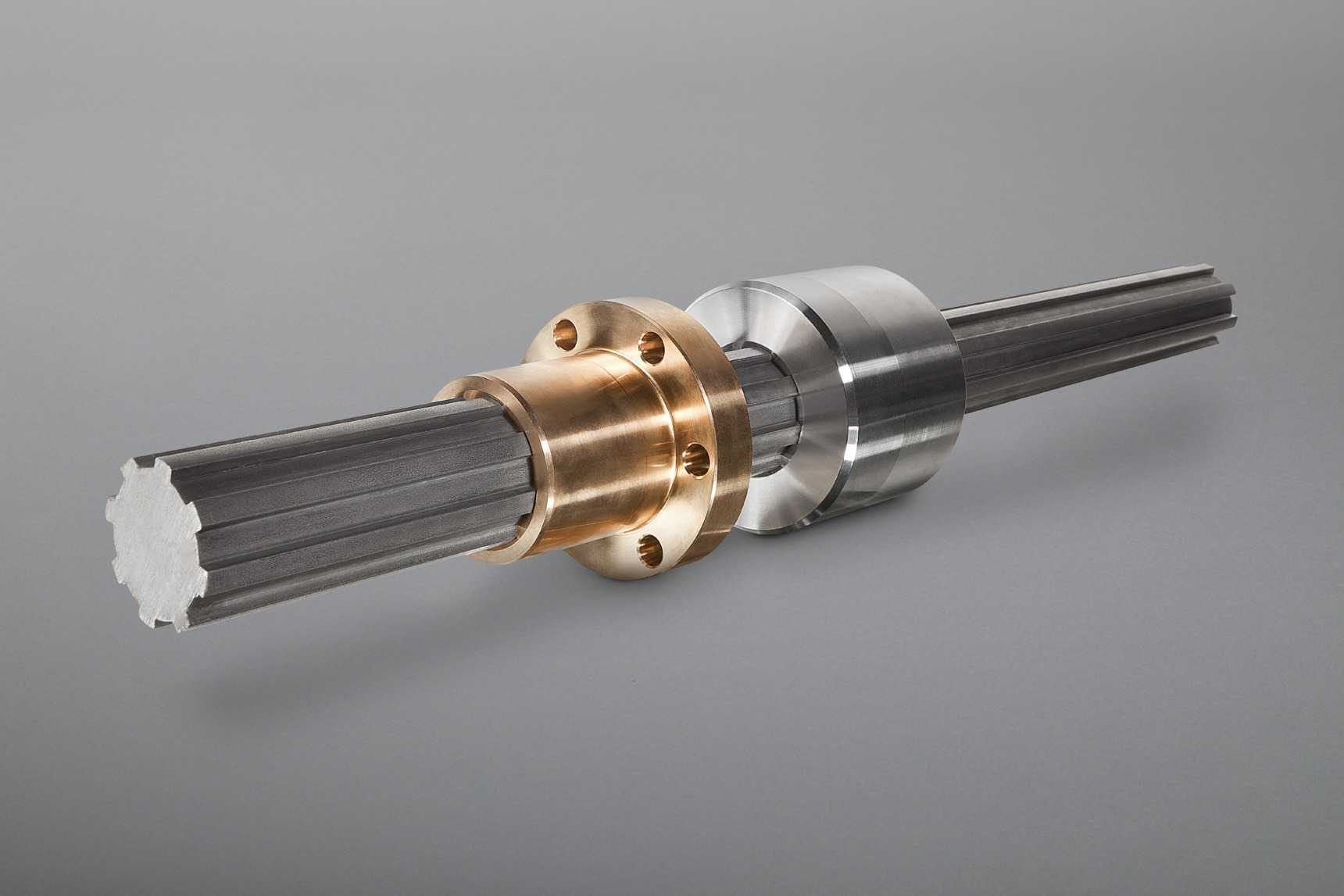

Splined Shafts and Sleeves

Our splined shafts are available in different dimensions and our splined sleeves are available in different designs and materials as well as shafts and hubs with inner and outer profiles, multi-spline profiles, serrations and single grooves.

In our stock program we have the following standard designs:

  • Splined Shafts
  • Splined Sleeves
    • round
    • with Flange
    • Flange with holes

We also offer individual solutions for our Splined Shafts and Sleeves. With our manufacturing capabilities, we can meet your application needs and produce the right product for you. Take a look at an excerpt of our customization options.

Splined Shafts and Sleeves

This section contains a selection of our products with further links to the respective technical specifications. Didn’t find what you were looking for? Contact us and we will be pleased to advise you on your project.

Splined Shaft and Sleeves
Splined Shafts
Splined Shaft and Sleeves - Sleeves Round
Splined Sleeves Round
Splined Shaft and Sleeves - Splined Sleeves Flange
Splined Sleeves Flange
Splined Shaft and Sleeves, Splined Sleeves Flange, with Holes
Splined Sleeves Flange, with Holes

Customization Options

  • With multi-spline profiles, serrations, single groove
  • Outer profile up to max. Ø 180 mm
  • Length up to max. 1 600 mm
  • Milled and ground
  • Tool-Ø max. 90 mm
  • Work-piece-Ø max. 400 mm
  • Broaching length max. 200 mm
  • Work-piece-Ø max. 1 500 mm
  • Bore-Ø max. 400 mm
  • Groove length max. 425 mm
  • Groove width max. 50 mm
