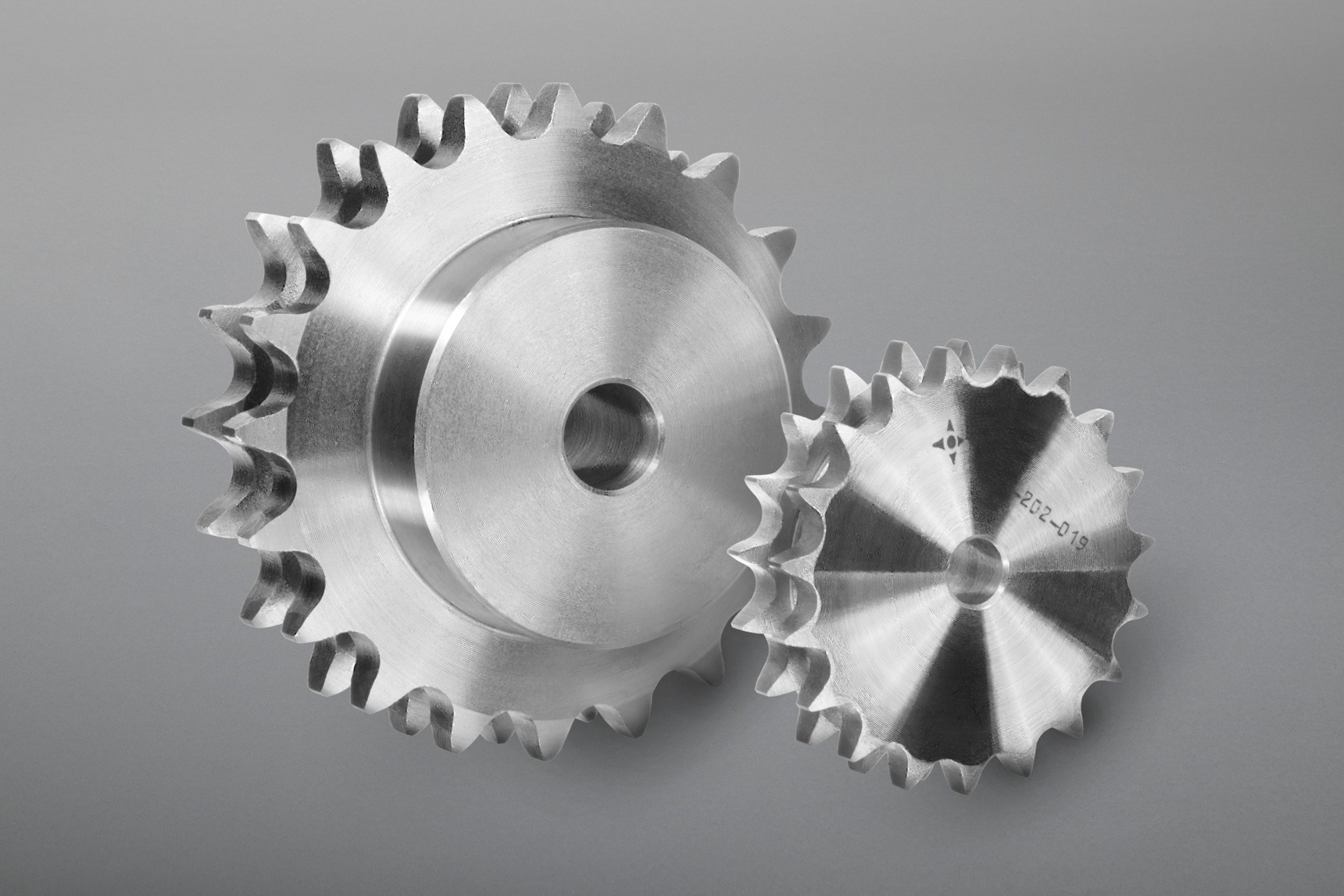

Sprockets

The range includes sprockets in simplex, duplex as well as triplex design, as well as chain wheel plates. The product range is complemented by additional sprocket designs and chain types, ancillary components, and accessories.

Our standard stock program includes the following products:

Chain Plate Wheels and Sprockets

  • Pitches ranging from 6 mm up to 50.8 mm (2“)
  • Simplex, Duplex, Triplex
  • Dependent on pitch and number of teeth available as simple or
    reinforced plate; with hub on one side; Materials: Steel, Cast Iron,
    Injection Moulded Acetal resin

Furthermore we offer sprockets

  • with double sided Hub, Simplex
  • Hardened, Simplex
  • Stainless Steel, Simplex
  • for Taper Lock, Simplex, Duplex
  • Bolt on Hubs for Plate Wheels
  • to ASA, Simplex

We also offer individual solutions for our Worm Gear Units. With our manufacturing capabilities, we can meet your application needs and produce the right product for you. Take a look at an excerpt of our customization options.

Sprockets Overview

This section contains a selection of our products with further links to the respective technical specifications. Didn’t find what you were looking for? Contact us and we will be pleased to advise you on your project.

Sprockets Basic Designs
Sprockets Basic Designs
Sprockets with Double-sided Hub, Simplex
Sprockets with Double-sided Hub, Simplex
Sprockets, Induction Hardened – Simplex
Sprockets, Induction Hardened – Simplex
Sprockets, Stainless Steel – Simplex
Sprockets, Stainless Steel – Simplex
Taper Lock Sprockets - Simplex, Duplex
Taper Lock Sprockets - Simplex, Duplex
Bolt on Hubs for Plate Wheels
Bolt on Hubs for Plate Wheels
Sprockets, to ASA – Simplex
Sprockets, to ASA – Simplex

Customization Options

  • Max. turning Ø 2 000 mm
  • Max. toothing Ø 2 000 mm
  • Gearing to suit any standard and non-standard chains
  • Pitch 4 mm up to 152.4 mm (6“)
  • Design: Simplex, Duplex, Triplex
  • Double sprockets and plate wheels
  • Steel and cast iron
  • Dimensions, heat treatment, materials and types of toothing acc. to your specifications and drawings
  • Ready to be installed

Customizing of our standard products acc. to drawing and customer requirements:

  • Finished bore acc. to ISO fit H7
  • Keyway according to DIN 6885/1
  • Thread for set screw and fixing hole
  • Heat treatments
